- Mounting position, terminal block completely compatible with current products (RDS series)
- High efficiency of 86% (RDS180A DC24V Input model)
- Approved by UL/CSA/EN62368-1
June 25, 2020

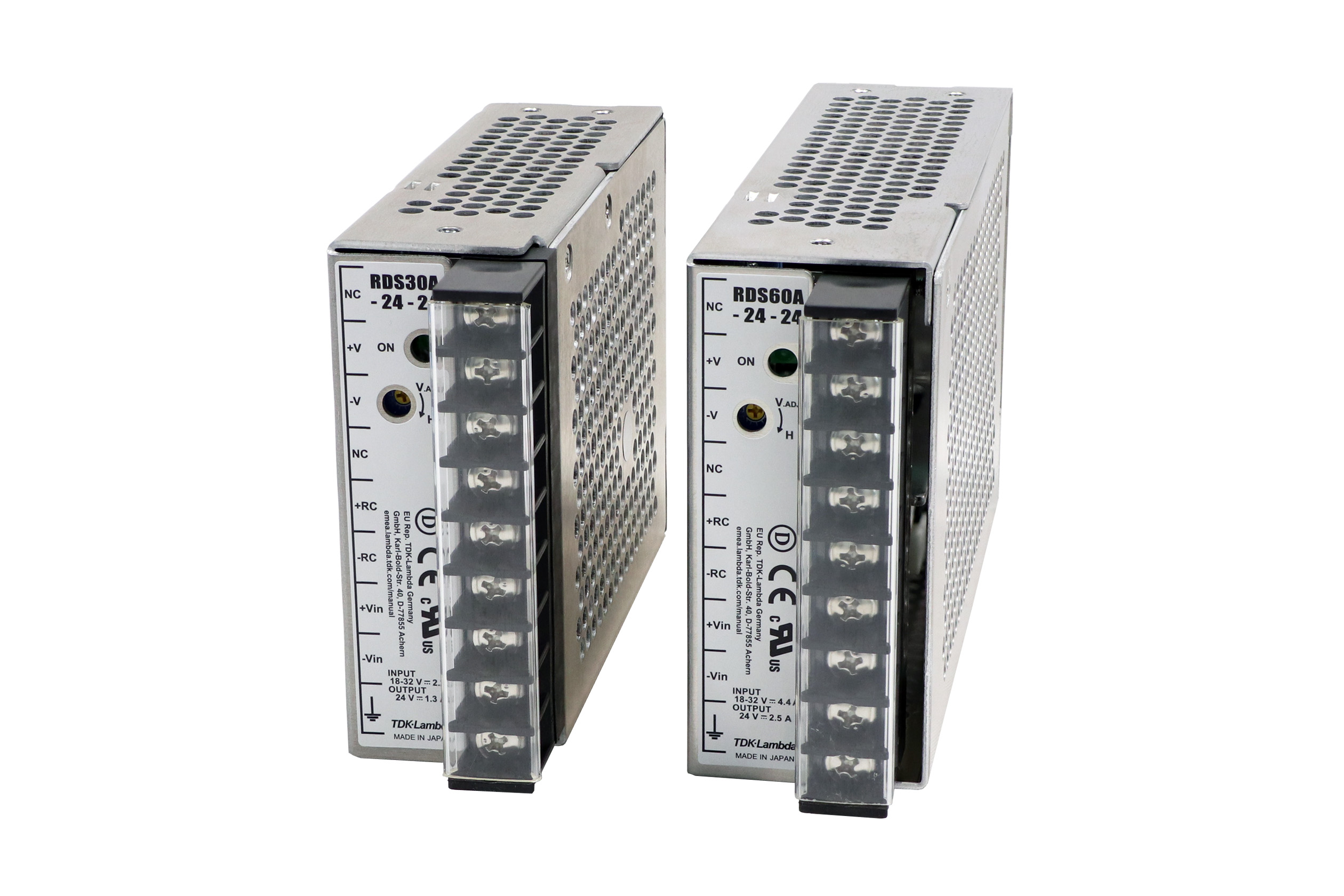

TDK Corporation (President and CEO: Shigenao Ishiguro) announces a new developed reliable DC-DC Converters, TDK-Lambda brand RDS-A（30/60/100/180W）Series. TDK-Lambda Corporation (President and CEO: Hiroyuki Yashiro) will start mass production and shipment from July 2020(30/60W) and from October 2020 (100W/180W).
While current, chassis mounted DC-DC Converters RDS series will continue to be available, we have developed the RDS-A series, with improvement in characteristics.
The mounting hole position and terminal block shape will be compatible to the current RDS series. Easy product service/maintenance and long term used is possible.
The RDS-A series uses the latest materials and optimizes the circuit configuration to improve efficiency by up to 6% compared to the current product (180W product, 24VDC output).
Coatings on both sides of the component mounting board have been implemented to further improve reliability.
The railway is seen as energy-saving and low-carbon means of transportation globally.
With the release of this new RDS-A series, we can offer line up of new products to contribute the creation of a safe and environmentally friendly transportation infrastructures.
- Railway signal related equipment
- Transport Automation System
- Power plant control equipment
Main features and benefits
- Attachment compatible with Current products
- High efficiency: 6% improvement compared to current products
- Designed to meet EN55011/ EN55032-B, FCC-B, VCCI-B
- Safety standard UL/CSA/EN62368-1 approved
- Coatings on both sides of the component mounting board
Major specifications: RDS-A series
|Input Voltage Range||18～32VDC||36～63VDC||18～32VDC||36～63VDC||18～32VDC|
|Efficiency (Typ.)（24V type）||83%||83%||84%||84%||85%||86%|
|Output Voltage||5 / 12 / 15 / 24VDC|
|Operating Temperature||-20～+60℃（with Derating）|
|Safety||Approved by UL62368-1, CSA62368-1, EN62368-1||Subject to approval by UL62368-1, CSA62368-1, EN62368-1|
|EMI||Designed to meet EN55011 / EN55032-B, FCC-B, VCCI-B|
|Size（W × H × D）||38×95×130
