Power Supplies: Open Frame & Din Rail Mount Buffer modules offer extended hold-up
- ZBM-AC: Connected to primary side of specific AC-DC power supply
- DBM20/DBM20: Connected to DC outputs of AC-DC/DC-DC Power Supplies
- ZBM-AC/ZBM20: Open frame & DBM: Din-Rail mount
Jan 27, 2022
TDK Corporation (TSE:6762) announces the new DBM20/ZBM20 and ZBM-AC of TDK-Lambda buffer modules. TDK-Lambda Corporation (President and CEO: Sanai Hattori) will start accepting orders from February 2022.
Buffer modules, collectively named “e-hold*1” are the first in TDK-Lambda lineup.

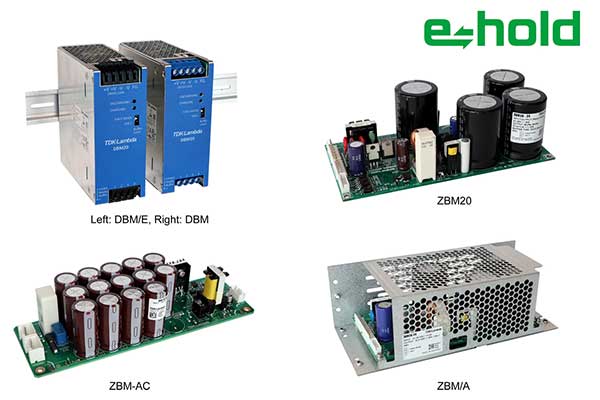

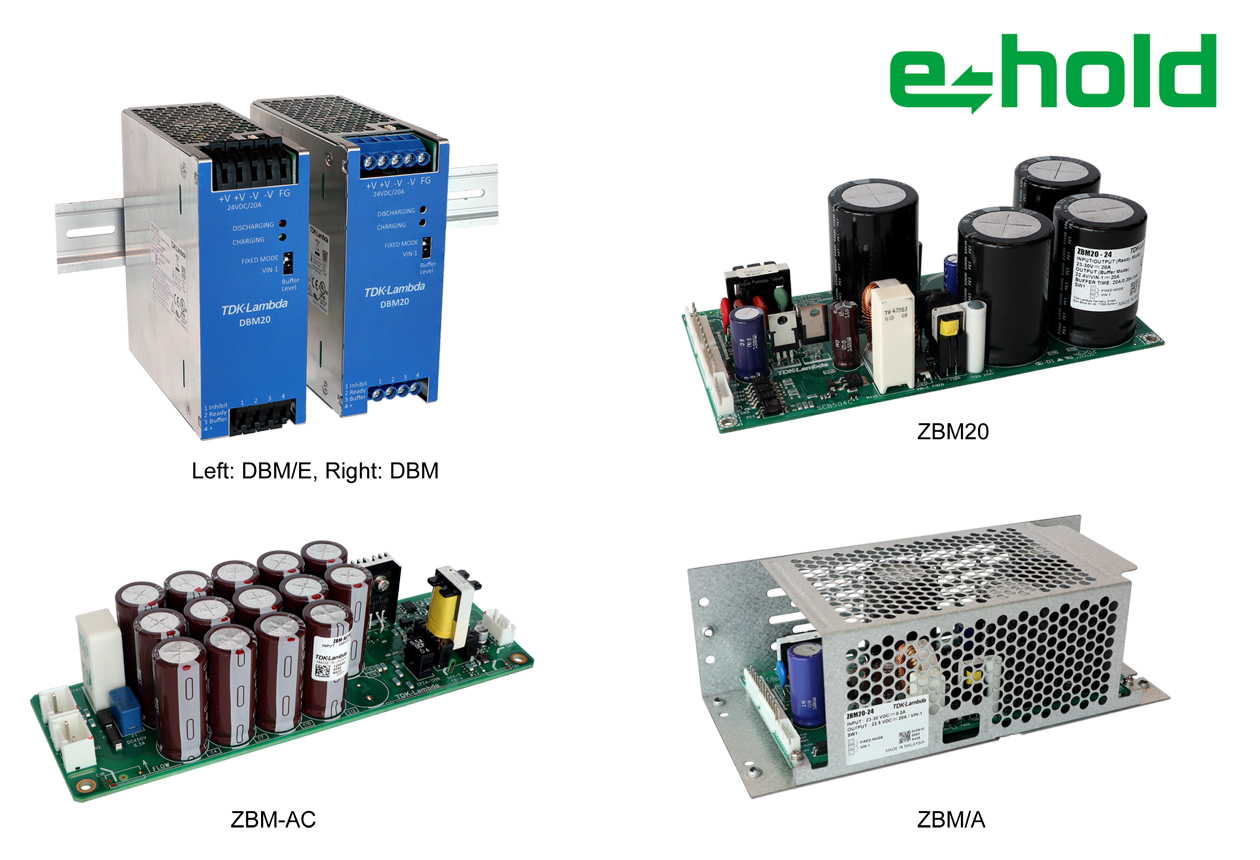

e-hold family includes ZBM-AC connected to primary side of specific AC-DC*2 and DBM/ZBM connected to DC outputs of general AC-DC/DC-DC power supplies.
e-hold supports growing market demand for extended hold up time coming from SEMI F47 and industrial automation. Multiple modules can be paralleled for longer buffer times.
The extended hold-up time allows equipment to safely shutdown and avoid data loss during AC power interruptions
Certification is to the IEC 62368-1 safety standards with UL/cUL508 approval for DBM20 and IEC/EN62477-1 (OVCIII) approval for ZBM-AC.
Main applications
- Industrial Automation, Robotics, Semiconductor fabrication equipment, Building automation, Communication equipment.
Main features and benefits
- Space saving in customer applications
- Supports various connection (primary side & DC outputs of power supplies)
- Seamless hold up operation with ZBM-AC
- Certified to international safety standards
- *1e-hold is registered trademark of TDK-Lambda
- *2Specific power supply ：ZWS300RC-24/BM and ZWS300RC-24/RBM
Key Data：ZBM-AC
| Model | ZBM-AC162 | ZBM-AC162/S |
|---|---|---|
| Upper Limit Input Voltage | 395VDC max | |
| Hold-up Time (Typ.) *3 | 200ms *in case of 290W | |
| Charging Time (Typ.) | 4s | |
| Auxiliary Power Supply | - | Yes (24VDC, 0.2A output) |
| Operating Temperature | -10 to + 70℃ | |
| Cooling | Convection | |
| Safety | IEC/UL/EN/CSA62368-1, IEC/EN62477-1 (OVCIII） | |
| Size (W×H×D) | 54.0 × 42.0 × 170.0 ㎜ | |
| Function | Power Fail Signal (Monitor module operation) | |
Key Data：ZBM20/DBM20
| Model | ZBM20-12 | ZBM20-15 | ZBM20-24 DBM20 (Fix mode) |
ZBM20-24 DBM20 (VIN-1 mode) |
|---|---|---|---|---|
| Input Voltage Range | 12VDC (11.5-14.4VDC) |
15VDC (14.4-18.0VDC) |
24VDC (23.0-30.0VDC) |
24VDC (24.0-30.0VDC) |
| Output Voltage | 11VDC | 13.8VDC | 22.4VDC | 23.0-29VDC |
| Buffer Time (Typ.) *3 in case of 20A |
380ms | 380ms | ZBM20-24: 380ms @22.4VDC DBM20: 250ms @22.4VDC |
|
| Nominal Buffer Power | 220W | 276W | 448W | 580W @29VDC |
| Charging Time (Typ.) | 40s | |||
| Operating Temperature | -25 to +70 ℃ | |||
| Cooling | Convection Cooling | |||
| Safety | IEC / UL / CSA62368-1, UL/cUL508 for DBM20 | |||
| Size (W×H×D) | 85.0 × 57.0 × 175.0 ㎜ | ZBM20-24 : 85.0 × 57.0× 175.0 ㎜ DBM20 : 49.0 × 123.6 × 115.4 ㎜ |
||
| Function |
DC OK Signal (Monitors DC input)
Buffer Signal (Monitors DC output) Ready Signal (Monitors module conditions) Inhibit Signal (Used to safety discharge energy stored in built-in bulk capacitor) |
|||
- *3With maximum load. Hold-up time can be extended with lighter load.
